E-Balance

Toyo Tires’ new e-balance technology for commercial truck tyres improves fundamental performance characteristics and their compatibility with one another. These characteristics are tyre life, irregular wear resistance, endurance and fuel consumption. All of these improvements help to lower fleet operating costs and make e-balance tyres more environmentally friendly.

In fact, the e-balance designed M137, M154 and M657 have both been named verified technologies through the EPA’s SmartWay program.

The new technologies of e-balance incorporate improvements in the areas of Tread Profile Retention, Bead Profile Retention, and overall Simulation for optimum tyre design.

Tread Profile Retention

Tyres that utilize e-balance exhibit improved tread profile retention, meaning less service growth compared to conventional tyres. The flatter tread radius provides an optimized footprint shape resulting in even wear, less irregular wear and longer life. Strain at the belt edge is reduced by approximately 30%, which also helps to improve tread profile retention.

Simulation of Vehicle Behavior

Blue Truck: e-balance
Red Truck: without e-balance
e-balance tire has better handling performance than the tyre without e-balance.
V: 40km/h Steering Angle 90°

e-balance simulation

Bead Profile Retention

Tyres that utilize e-balance have higher bead stiffness to achieve improvements in bead profile retention. This leads to a reduction in irregular wear and an improvement in endurance. The bead area profile is retained even after service. Increased bead stiffness is achieved through the use of a high stiffness bead core, which is then surrounded by high stiffness rubber. A low heat build-up rubber is also used in the bead filler area. Strain at the ply turn-up edge is reduced by approximately 20% over conventional tires.

bead profile

Simulation

There are four simulation technologies utilized in e-balance. Tyre irregular wear, tyre profile change, tread pattern noise and vehicle handling behavior. All of these areas are analyzed with careful consideration to how they affect one another. This new simulation technology allows for optimization of tyre design with much higher accuracy than what was possible before.

simulation

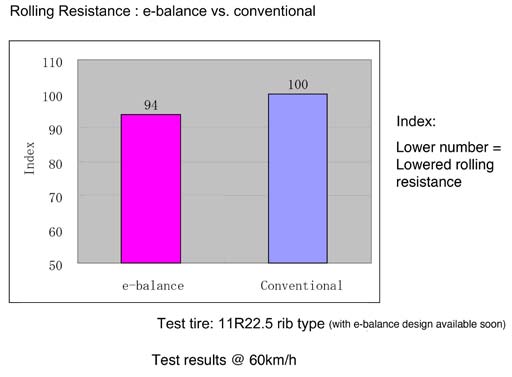

rolling resistence
