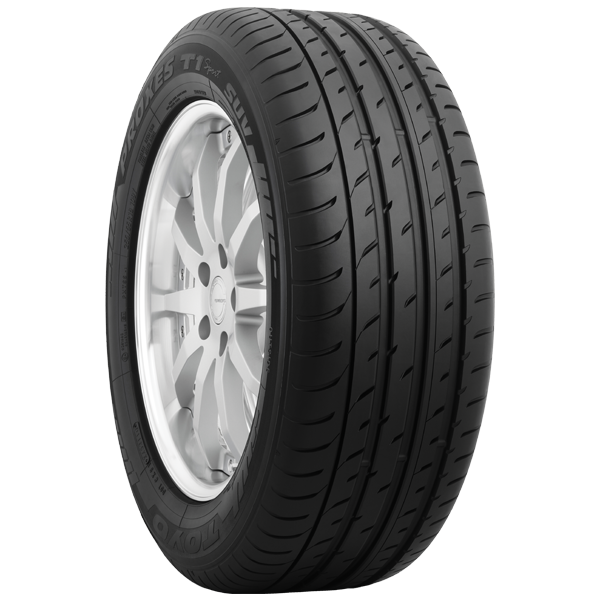

PROXES T1 Sport SUV
PROXES T1 Sport SUV




Outside - Cornering Performance

  • Increased contact area through use of wide ribs with shallow and narrow groove to maintain good tread contact with the road.
  • Improved handling and high grip.

Inside - Aquaplaning & Braking

  • Two wide grooves ensure good water drainage.
  • Better braking achieved via a rib based pattern configuration, which increases the tread’s rigidity in the back and forward directions.

Tread Design - Wide Outer Blocks

  • Increased contact area through the use of wide blocks with shallow and narrow grooves to maintains good tread contact with the road. Improved handling with responsive steering feel and high grip.

Tread Design - Wide Center Rib*

  • High-speed stability & handling response are improved by adoption of a wide center rib.
  • *285 section width and larger

Tread Design - Inner Rib & Notch

  • The inside ribs have a solid shape, which enhances rigidity, improves braking performance and reduces irregular wear.

Tread Design - Wide Straight Grooves

  • Wide straight grooves provide a wide water channel for better aquaplaning resistance.


<p><a rel="lightvideo" href="/UserFiles/Flash/Shared/Toyo%20Tires%20SUV%20-%20Revised%20Graphics%20June%202011_1.flv"><img width="350" height="195" alt="" src="/UserFiles/Image/Shared/video-poster-frame.jpg" /></a></p>


Tire Size Load Speed Index Tread Depth (mm) Overall Diameter (mm) Overall Width (mm) Approved Rim Width Range (inch)
235/65 R17 104W 8.3 731 244 6.50-7-8.50 E C 71 dB
235/65 R17 108V XL 8.4 731 243 6.50-7-8.50 E C 71 dB
255/60 R17 106V 8.3 736 256 7.00-7.5-9.00 E C 72 dB
235/60 R18 107W XL 8.0 734 241 6.50-7.0-8.50 E C 71 dB
235/50 R18 97V 8.3 688 244 6.50-7.5-8.50 F C 71 dB
255/55 R18 109Y XL 7.5 732 268 7.00-8-9.00 E C 72 dB
265/60 R18 110V 8.3 774 217 7.50-8-9.50 E C 72 dB
235/55 R19 101W 8.3 735 246 6.50-7.5-8.50 E C 71 dB
255/55 R19 111V XL 8.3 759 266 7.00-8-9.00 E C 72 dB
255/50 R19 107W XL 8.0 734 264 7.00-8-9.00 E C 72 dB
265/50 R19 110Y XL 7.3 745 278 7.50-8-9.50 E C 72 dB
275/45 R19 108Y XL 8.3 726 273 8.50-9-10.50 E C 72 dB
275/45 R20 110Y XL 7.5 757 271 8.50-9-10.50 E C 72 dB
275/40 R20 106Y XL 8.0 727 275 9.00-9.5-11.00 E C 72 dB
295/40 R20 110Y XL 7.5 739 302 10.00-10.5-11.50 E C 72 dB
